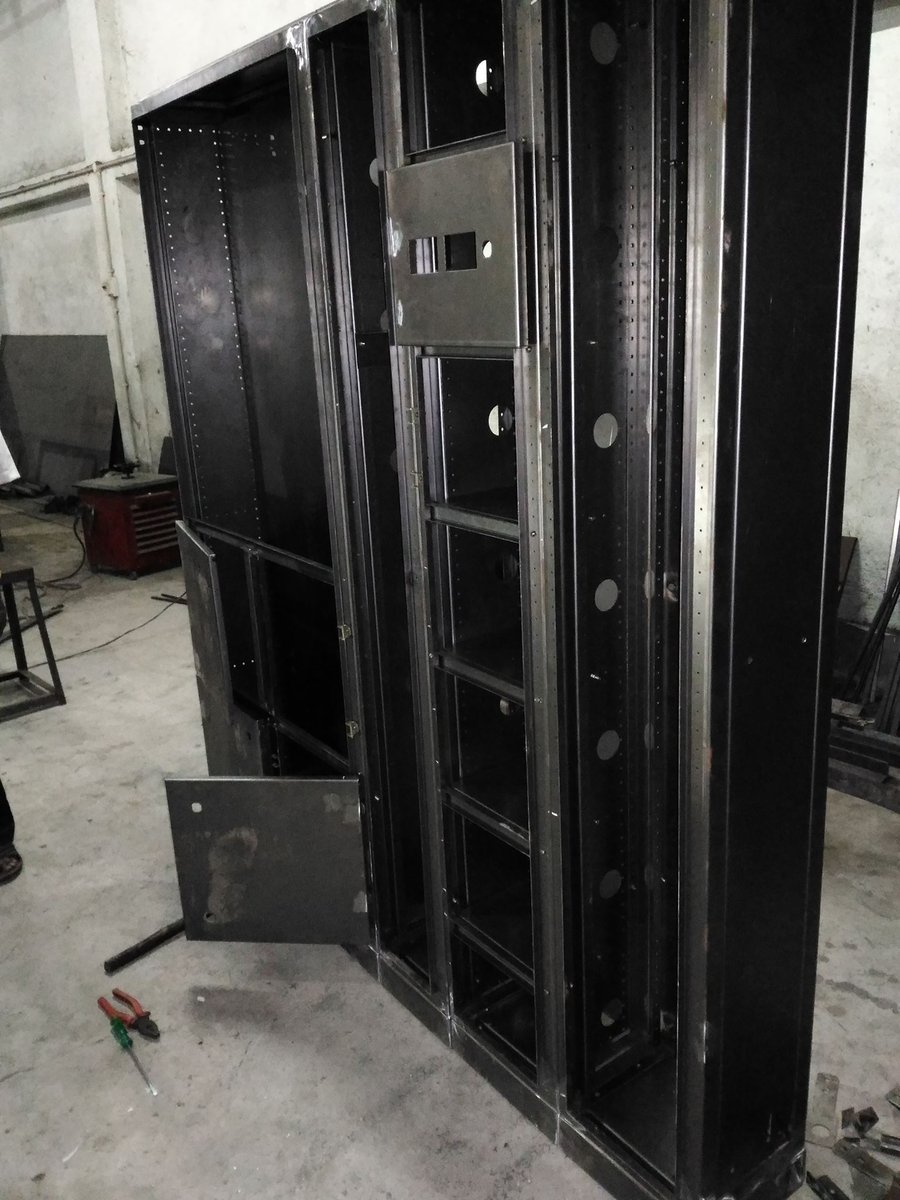

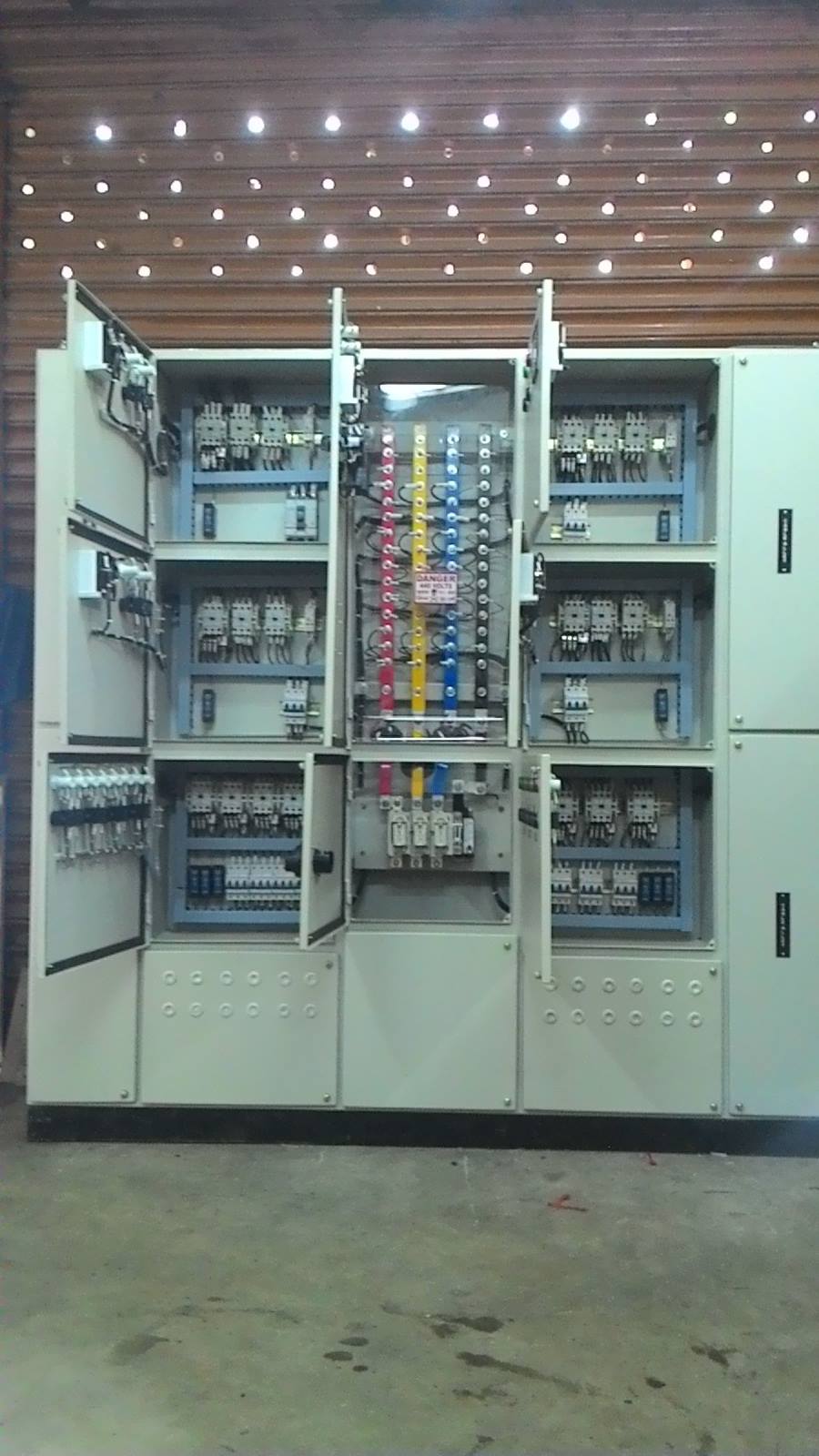

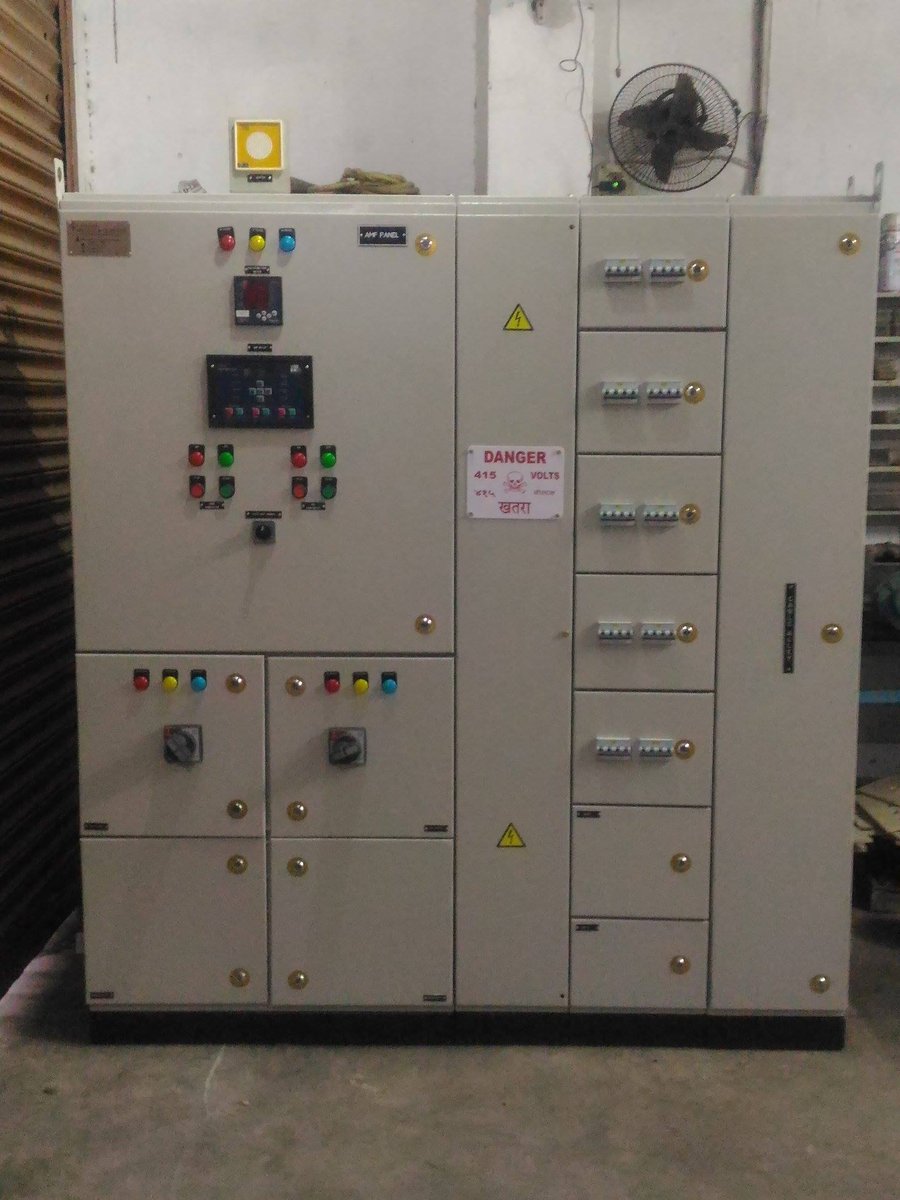

PCC Panel (Power Control Centre)
PCC Panel (Power Control Centre)
A PCC Panel Also Operate like Electrical Power Distribution Panel is a module in an energy supply system that divides an electrical power input into subsidiary circuits while providing a protective fuse or circuit breaker for each circuit in a common enclosure. The primary goal of this panel is to not only properly distribute incoming power, but also to protect the subsidiary circuits from overload and short circuits,We are the Reputed Manufacturer in udisha
PCC Panel Technical Features :
| Application: | Protection and Control Power Distribution System. |
|---|---|
| AC Rating Volts: | 0 – 500V. |
| AC Rating Amps: | 100 – 4000A ( Based on customer’s requirement.) |
| AC Rating Frequency: | 50Hz. |
| Rated Insulated Voltage: | 690V. |
| Temp. Rise Up to: | 35°C Rise over 50°C ambient. |
| Degree of Protection: | IP 52, 54, 55, 65. |
| Power Busbar Size: | Al. or Cu. Busbar. |
| Over current Protection: | Properly. |
| Enclosure Painting: | 7 tank Powder Coated Paint and as per Client’s requirement. |
| Panel Mounting: | Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame. |
| Current Monitoring: | Possible |
| Phase Monitoring: | Possible. |
| Configuration: | Based on customer’s requirement . |
| Type Test performance: | Short Circuit with Stand temp. rise with stand, Degree of Protection . |
| Product Warranty: | At least 18 Month . |
