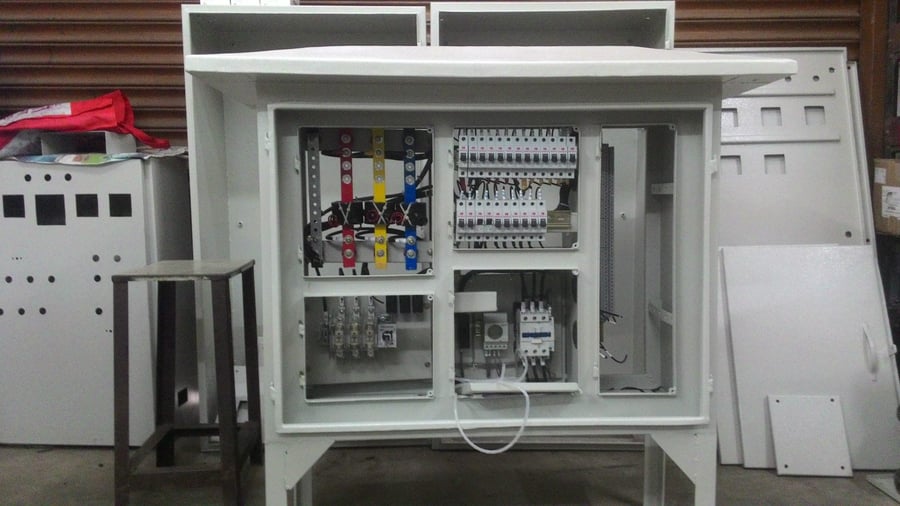

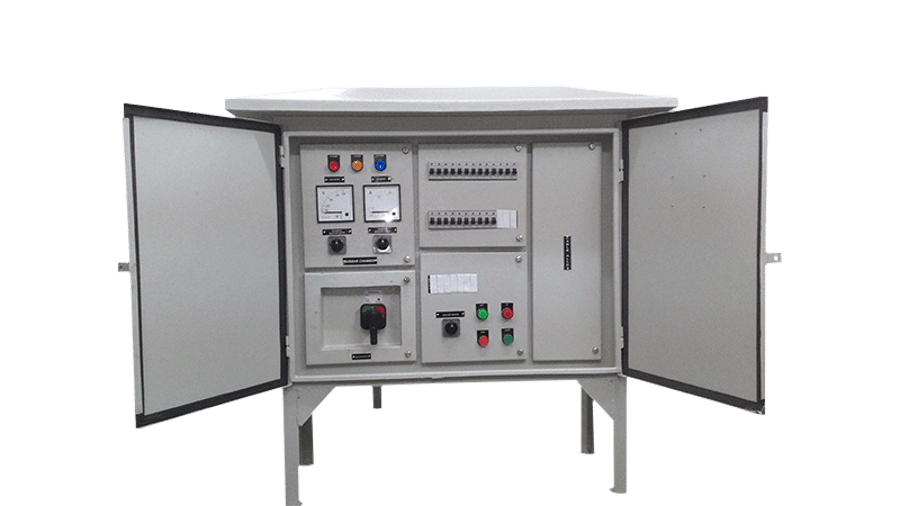

Outdoor Type Feeder Pillar Panel
Outdoor Type Feeder Pillar Panel
The Feeder Pillar Panel are basically another Version of Power Distribution Panel it also Power Breaker Panel which is very first set of Switching device used for Power distribution. Simply, Feeder Pillar Panel is Stand Mounted Type enclosure Box Having Four Site of Canopy with Higher IP Rating with Epoxy Paint on the Enclosure, which protect the Inside Switcher used for Power distribution Purpose. A feeder pillar panel provide isolation and Contact to electrical distribution components We are the Reputed Manufacturer in Jharsuguda
| Application: | Protection and Control Power Distribution. |
|---|---|
| AC Rating Volts: | 0 – 500V. |
| AC Rating Amps: | 100 – 1000A ( Based on customer’s requirement.) |
| Rated Insulated Voltage: | 690V. |
| AC Rating Frequency: | 50Hz. |
| Temp. Rise Up to: | 35°C Rise over 50°C ambient. |
| Degree of Protection: | IP 52, 54, 55, 65. |
| Power Busbar Size: | Al. or Cu. Busbar. |
| Over current Protection: | Properly. |
| Enclosure Painting: | 7 tank Powder Coated Paint and as per Client’s requirement. |
| Panel Mounting: | Floor / Ground Mounted, Wall Mounted, Mounted on Angle Frame. |
| Current Monitoring: | Possible |
| Phase Monitoring: | Possible. |
| Configuration: | Based on customer’s requirement . |
| Type Test performance: | Short Circuit with Stand temp. rise with stand, Degree of Protection . |
| Product Warranty: | At least 12 Month . |
